Wi-Fi 7 Outdoor Dual 5 GHz

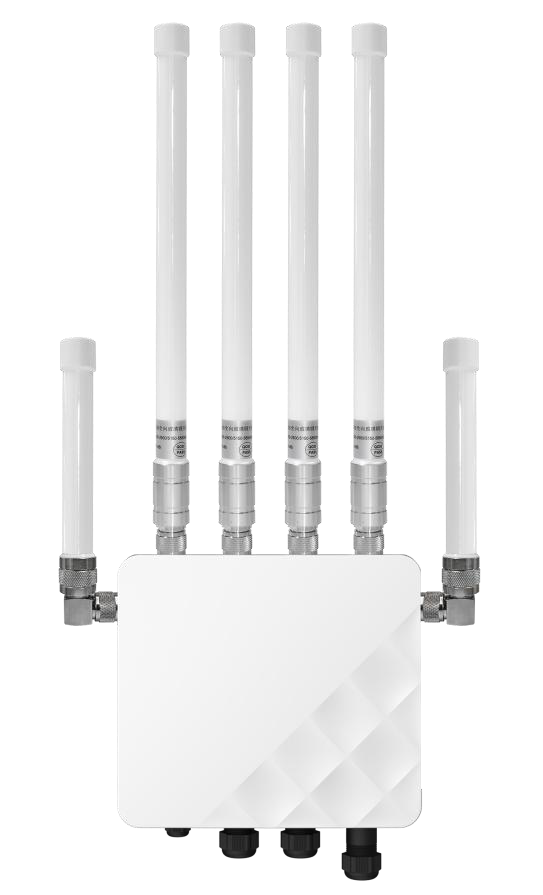

NB-AP722-H
Outdoor Wi-Fi 7 Tri-Radio Access Point
A hardened outdoor AP with 2.4 GHz plus two independent 5 GHz radios for up to 6.45 Gbps — 160 MHz channels, MLO, six external N-type omni antennas and a 10G SFP+ / 2.5G 802.3bt PoE uplink.
- Aggregate PHY rate
- 6.452 Gbps
- Radios
- 2.4 + dual 5 GHz
- Wired uplink
- 2.5G 802.3bt PoE
- Antennas
- 6 × N-type omni
Key capabilities
Two independent 5 GHz radios
Double the 5 GHz capacity for coverage and backhaul without stealing airtime from clients.
Outdoor hardened
Integrated lightning-protection board, ESD ±15 kV air / ±8 kV contact, and -30 °C to 70 °C operation.
10G fibre uplink
A 10G SFP+ data port plus 2.5G 802.3bt PoE for long runs across a campus or yard.
Multi-Link Operation
160 MHz channels and MLO keep outdoor links stable under load.
External antennas
Six N-type omni antennas included — aim coverage where the site needs it.
Cloud or on-prem managed
Standalone web GUI, or under Newbridge Controller / CMC.
Specifications
Radio
- Bands
- 2.4 GHz + two independent 5 GHz radios
- Spatial streams
- 2×2 per radio
- Peak PHY rate
- 2.4 GHz 688 · 5 GHz 2,882 ×2 Mbps
- Channel width
- up to 160 MHz · MLO
- Antennas
- 6 × external N-type omni (included)
Wired
- Uplink
- 1 × 2.5G, 802.3bt PoE
- Fibre
- 1 × 10G SFP+ (data only)
Outdoor hardening
- Protection
- Integrated lightning-protection board
- ESD
- ±15 kV air / ±8 kV contact
- Surge
- 4 kV common mode / 2 kV differential
- Operating temp
- -30 °C to 70 °C
Figures are aggregate theoretical PHY (link) rates — the sum of the per-band PHY rates — not user-achievable throughput. Actual data throughput and coverage vary with the environment, network design, placement and client devices.
Managed
Runs standalone, or under one console.
Zero-touch provisioning, live telemetry and rolling firmware upgrades from Newbridge Controller or CMC — cloud or on-premise. Only management data leaves the site; user traffic stays local.
- Zero-touch provisioning
- Automated rolling firmware
- Live Link telemetry
- Reporting & analytics

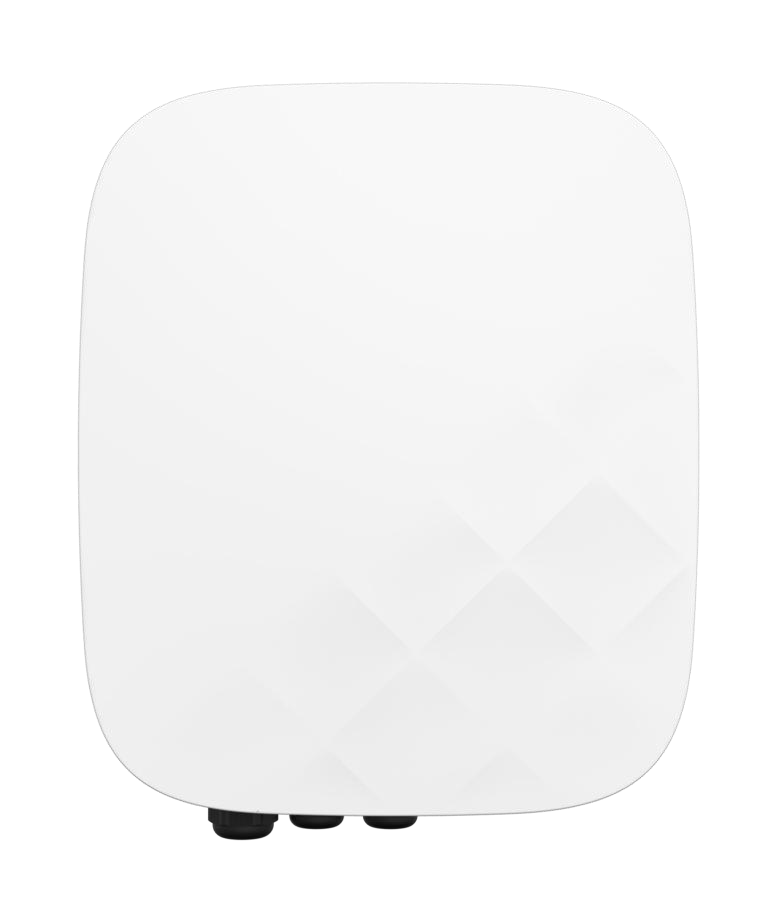

Related access points
