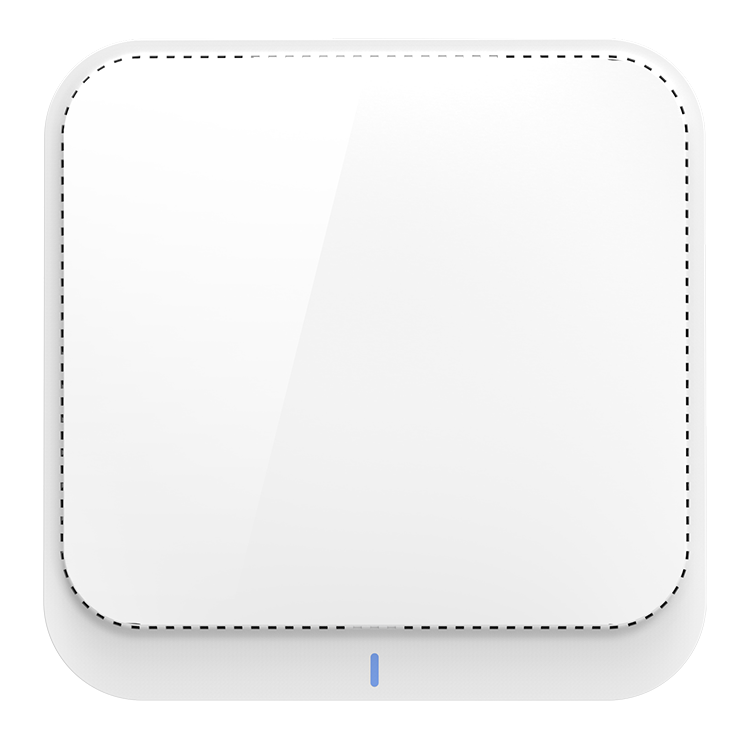

NB-AP644-C
Indoor Wi-Fi 6 Dual-Band 4×4 Ceiling Access Point
Enterprise-class Wi-Fi 6 for the ceiling — 4×4:4 MU-MIMO on both bands, up to 3.55 Gbps of aggregate capacity and a 2.5G PoE+ uplink that keeps wired backhaul ahead of the air.
- Aggregate PHY rate
- 3.55 Gbps
- Spatial streams
- 4×4 : 4
- Wired uplink
- 2.5G PoE+
- Wi-Fi
- 802.11ax
Key capabilities
4×4 on both bands
Wi-Fi 6 efficiency
2.5G PoE+ uplink
Enterprise security
Managed or standalone
The value pick
Specifications
Radio
- Bands
- 2.4 GHz · 5 GHz (dual-band)
- Spatial streams
- 4×4 : 4
- Peak PHY rate
- 2.4 GHz 1,148 · 5 GHz 2,402 Mbps
- Modulation
- 1024-QAM, up to 160 MHz, OFDMA, MU-MIMO
Wired
- Uplink
- 1 × 2.5G PoE+
- LAN
- 1 × 2.5G
Placement
- Form factor
- Indoor ceiling
- Best for
- Offices, campuses, retail
Figures are aggregate theoretical PHY (link) rates — the sum of the per-band PHY rates — not user-achievable throughput. Actual data throughput and coverage vary with the environment, network design, placement and client devices.
Runs standalone, or under one console.
Zero-touch provisioning, live telemetry and rolling firmware upgrades from Newbridge Controller or CMC — cloud or on-premise. Only management data leaves the site; user traffic stays local.
- Zero-touch provisioning
- Automated rolling firmware
- Live Link telemetry
- Reporting & analytics
